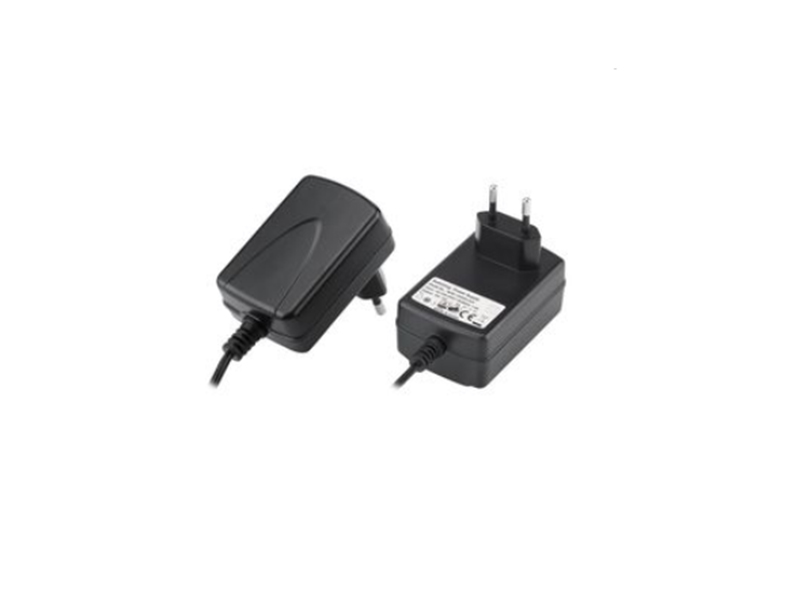

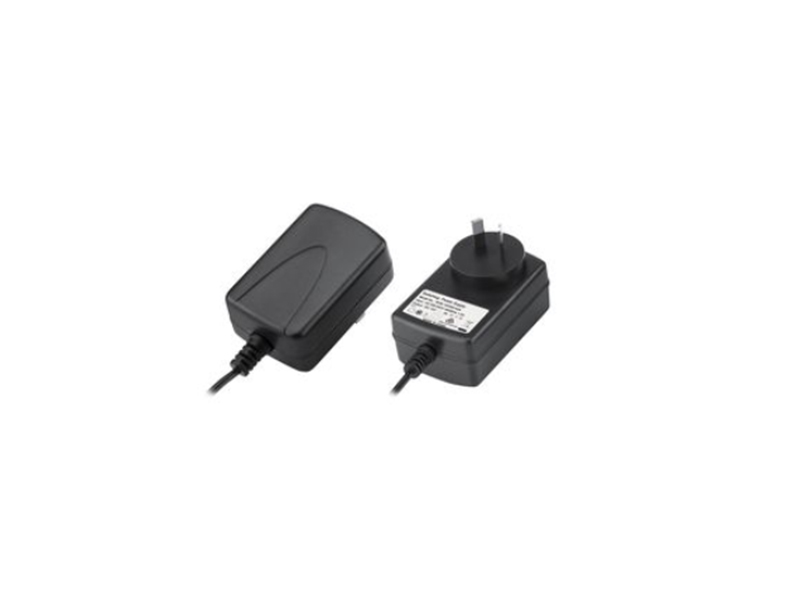

Wall Mount Power Supply 36W
- Product name:Wall Mount Power Supply 36W, input 100-240VAC, output 5-24VDC 0.1-3A with Custom Cable and DC Port
- Lead Time: 25–30 days
- US$ 3.21 - 3.36 / Piece
- Minimum order quantity: 1000 Pieces
- Model Number：HP36A
产品描述
Key Specifications/Special Features:
Input
Input Range 100-240VAC
Frequency 50-60 Hz
Input Current ≤0.6A
Inrush Current ≤60A
Efficiency Meet CEC Level VI (DoE), CoC Tier 2
Hold Up Time ≥8.3mS
Turn On Time ≤3S
Environmental
Operating Temperature ：0-40℃
Storage Temperature ： -20-85℃
Operating Humidity ：10%-90%
Storage Humidity：5%-95%
Safety
EN60950/60065, UL, FCC, PSE, GS, CE, CCC, BS,LVD, SAA
Electrical Specifications
Max. Output Power (W) ：36W
Output Voltage (vo)：12/24V
Min. Load (io)：0.1-1.2A
Ripple & Noise：100mV
Features
DoE Compliance
RoHS Compliance
Over Voltage Protective Installation
Short Voltage Protective Installation
Protection Type: Auto Recovery
MTBF: 100,000 hrs
Main Export Markets
- Asia
- Eastern Europe
- North America
- Western Europe
